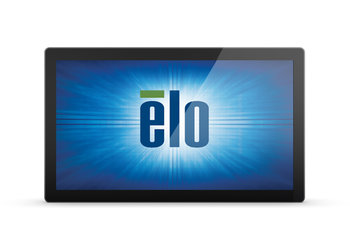

20" Elo 2094L Einbau Touch Monitor
| Model | 2094L |
|---|---|
| Bezel color | Black |
| Active Display Area | 434.88 x 238.68 mm / 17.12 x 9.40 inches |
| Dimensions | IntelliTouch: 476 x 280.1 x 43.4 mm / 18.74 x 11.03 x 1.71 inches Projected Capacitive: 644.2 x 388.4 x 39.6 mm / 18.87 x 11.22 x 1.59 inches See dimensional drawings for details |
| LCD Technology | Active matrix TFT LCD |
| Diagonal Size | 19.53" |
| On-Screen Display (OSD) |
Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
| Native Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Preset Video Timings | 640x480 60Hz 720x400 70Hz 800x500, 60Hz 800x600 56, 60Hz 1024x768 60Hz 1280x800 60Hz 1280x1024 60Hz 1366x768 60Hz, 60Hz RB 1440x900 60Hz, 60Hz RB 1680x1050 60Hz, 60Hz RB 1920x1080 50, 60Hz |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD panel: 250 nits IntelliTouch: 225 nits Projected Capacitive (PCAP): 225 nits |
| Response Time (Tr + Tf) (typical) | 20 msec |
| Viewing Angle (typical) | 89°/89° or 178°/178° |
| Contrast Ratio (typical) | 3000:1 |
Video| Video | Analog VGA on Female DB-15 connector DisplayPort V1.1a - Supports later versions of Display Port video input Input Video Horizontal Sync frequency range: 30 - 82KHz Input Video Vertical Sync (frame rate) frequency range: 50-75Hz |
|---|---|
| Audio | N/A |
Power| Power |
External DC - Optional power brick (sold separately) Monitor input power connector: Coaxial power jack (2.1mm pin outer diameter, 5.5mm barrel inner diameter) Monitor input power signal specifications: 12VDC +/- 5% Adapter input connector: IEC 60320 C14 Adapter input voltage range: 100-240VAC, 50/60Hz Power Consumption (Typical): ON (monitor + adapter at 230V/50Hz): 20WSLEEP (monitor + adapter at 230V/50Hz): 1.5W OFF (monitor + adapter at 230V/50Hz): 0.5W ` |
|---|
Dimensions| Shipping box Dimensions | 575 (L) x 376 (W) x 185 (H) mm / 22.64 (L) x 14.8 (W) x 7.28 (H) inches |
|---|
Weight| Weight | Unpackaged: 4.7Kg (10.36 lb) Packaged: 6.4Kg (14.11 lb) |
|---|
Environmental| Temperature | Operating: 0°C to 40°C (32°F to 104°F) Storage: -20°C to 60°C (-4°F to 140°F) |
|---|---|
| Humidity (non-condensing) |
Operating: 20% - 80% Storage: 10% - 95% |
Other| Form Factor | Open-Frame |
|---|---|
| MTBF | 50,000 hours demonstrated |
| Mounting Options |
|
| Box contents |
|
